Vibration Testing

Tekno - ETA > Vibration Testing

Vibration Testing is performed to examine a product’s response to a defined vibration environment. The most common type of vibration tests are sinusoidal or random.

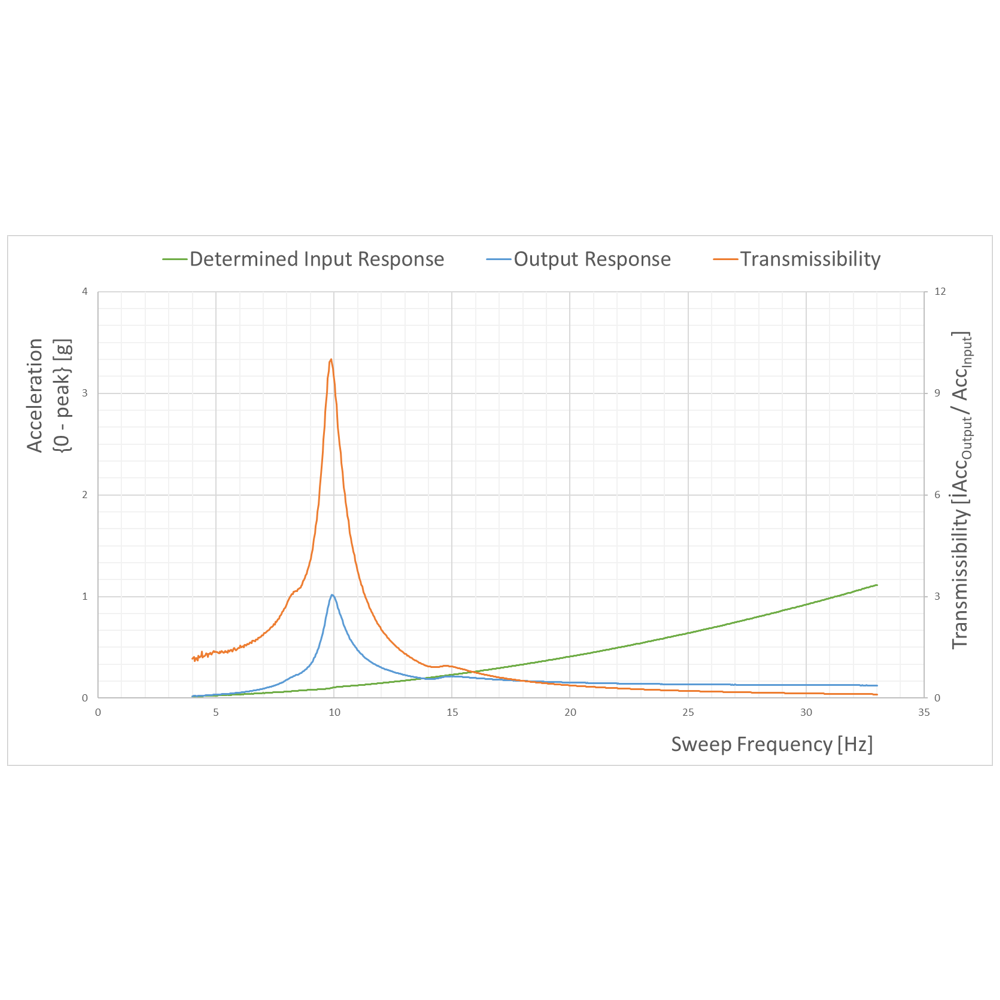

In general, sinusoidal vibration tests are performed to explore the structural response of a given system to a varying excitation frequency input at a certain acceleration level. The data gathered from the appropriate locations of the system under test can be used to determine the modal frequencies of the structure that lies within the testing frequency range. The determined frequencies can either be used as input for design improvement and/or further testing at these frequencies to validate the robustness of the structure.

With random vibration test profiles, the system under test is excited for all frequencies at once within the defined test spectra for a given time and generally considered to be a good application for simulating the real-world environment conditions. In general, these type of vibration profiles are used for determining the robustness of the structure under the conditions of expected working environment, transportation, shipping etc.

Tekno-ETA has the required experience and capabilities necessary to assist you with your product development studies. While many laboratories have the ability to identify your problem, we have the talent and experience to formulate realistic solutions and implement them within the confines of your budget and current product development schedule.

Testing standards we can carry out:

  • MIL-STD-810F Method 514.5 Vibration
  • MIL-STD-810G Method 514.6 Vibration
  • MIL-STD-810G Method 528 Mechanical Vibrations of Shipboard Equipment
  • MIL-STD-810G Change1 Method 514.7 Vibration
  • MIL-STD-810G Change1 Method 528.1 Mechanical Vibrations of Shipboard Equipment

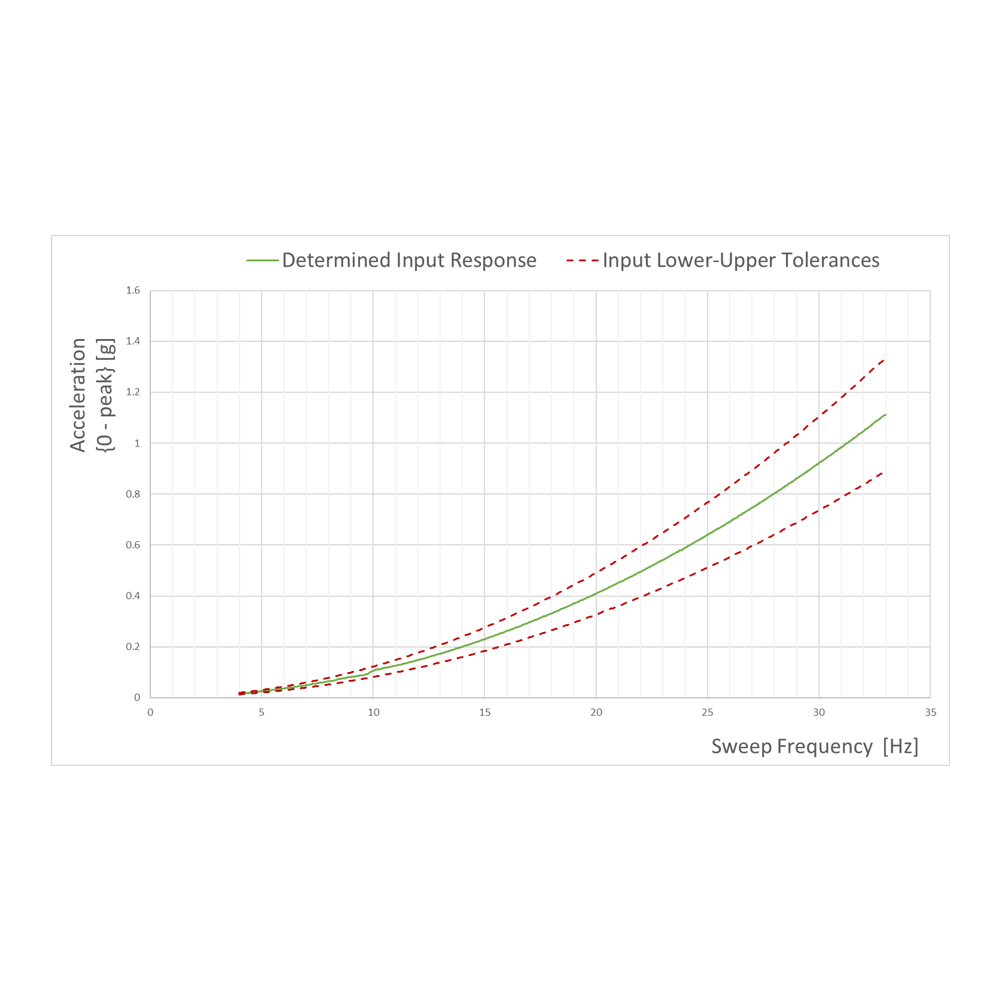

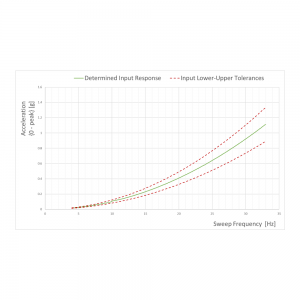

  • MIL-STD-167-1 Mechanical Vibrations of Shipboard Equipment
  • MIL-STD-167-1A Mechanical Vibrations of Shipboard Equipment
  • RTCA/DO-160G Section 8 Vibration
  • IEC 61373
  • ISO 16750-3
  • IEC 60068-2-6
  • AECTP 400

Please feel free to contact us for additional testing standards and applicability of your custom testing profiles.

Vibration profile types that we can perform includes;

  • Sinusoidal

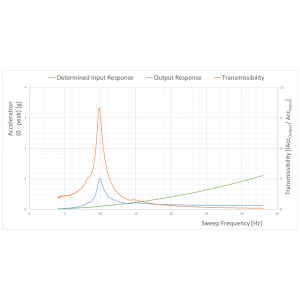

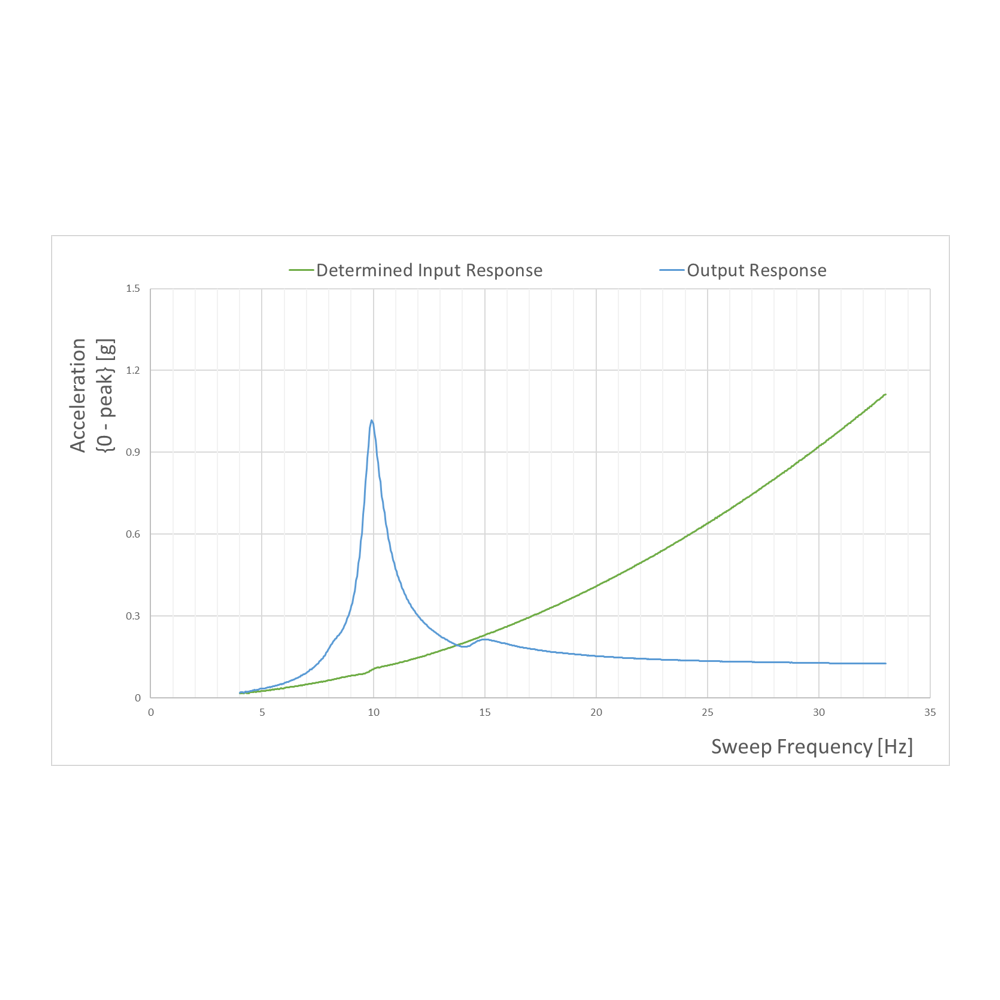

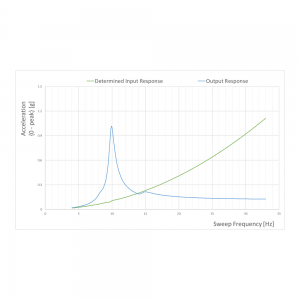

  • Resonance Search and Dwell

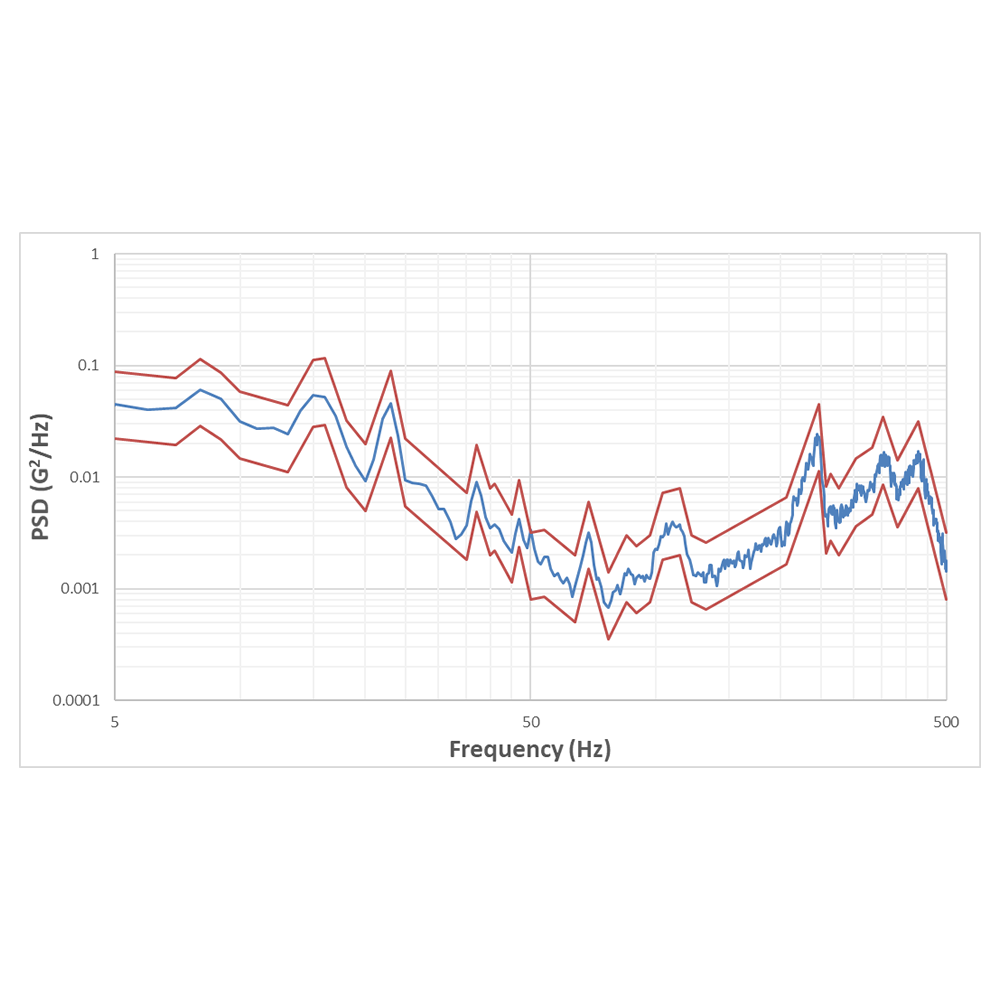

  • Random

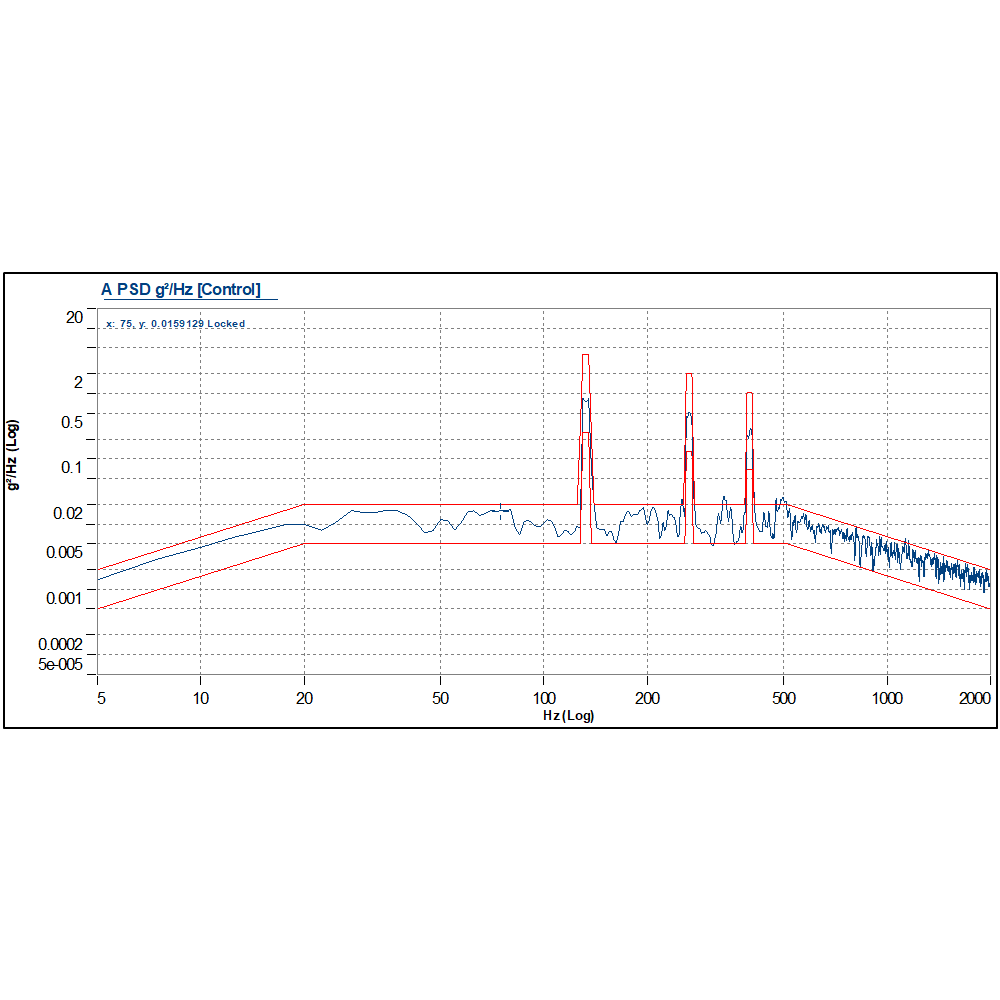

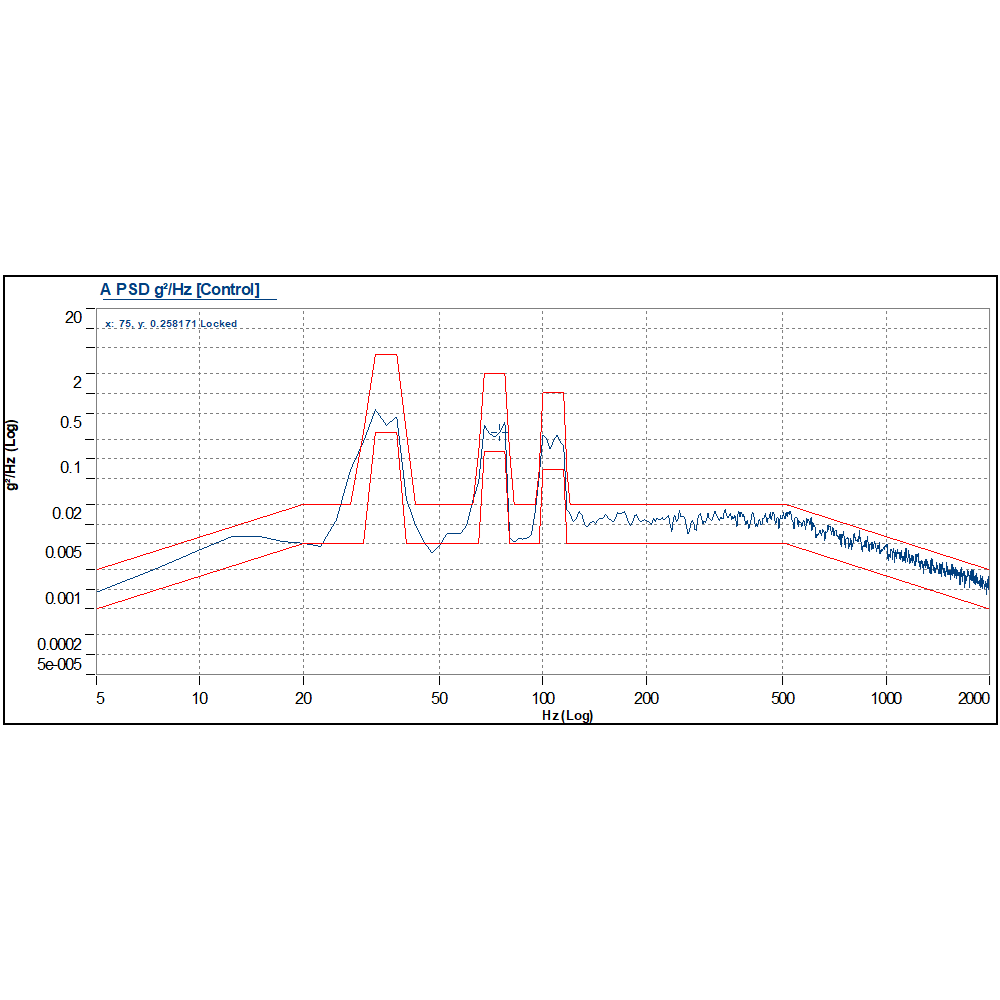

  • Sine on Random

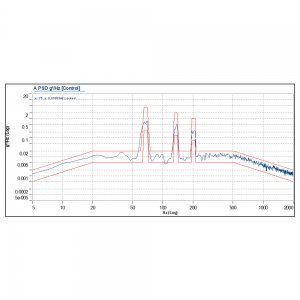

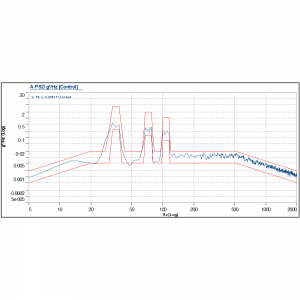

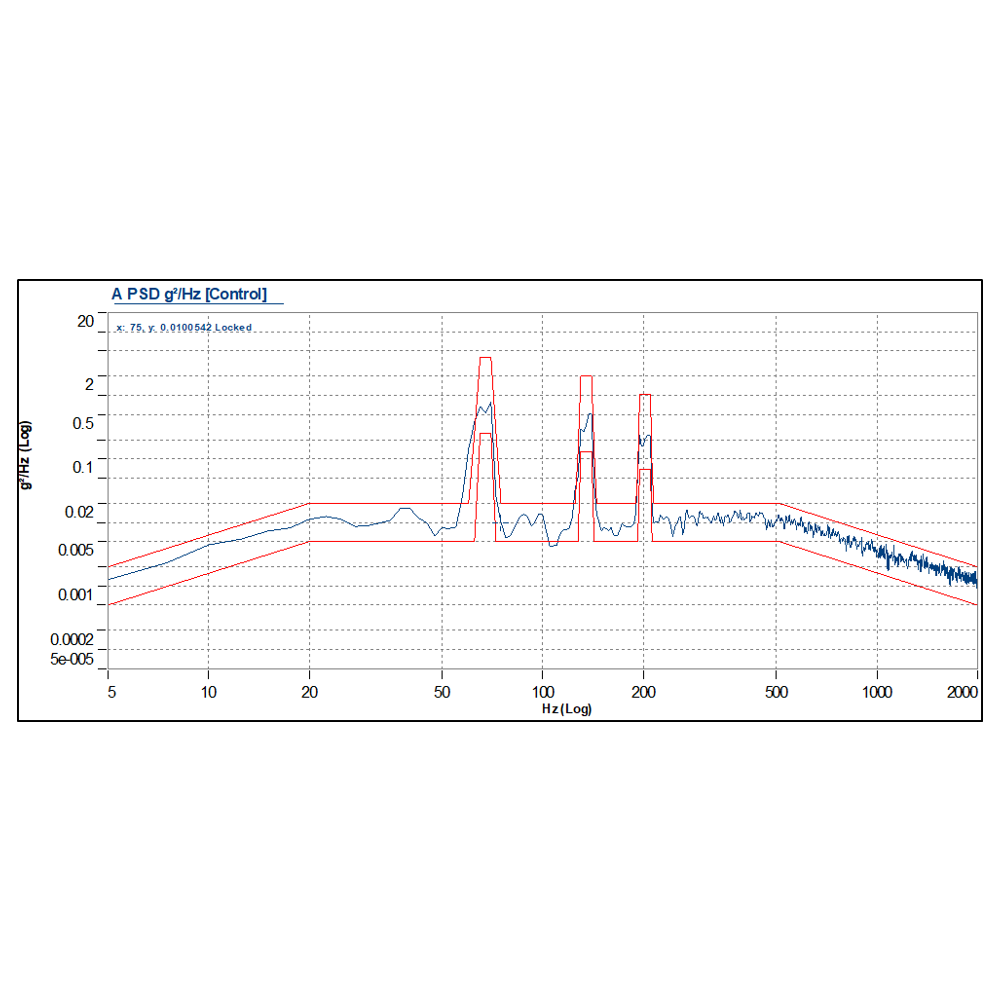

  • Random on Random

To request a quote for our services please complete our RFQ Sheet Form.
