Climatic Chambers

Tekno - ETA > Climatic Chambers

Climatic chambers simulate a full range of temperature testing and humidity testing conditions. They are able to provide rapid product temperature change rates and use varying levels of relative humidity.

The technical specifications of Climatic Chambers infrastructure in Tekno-ETA;

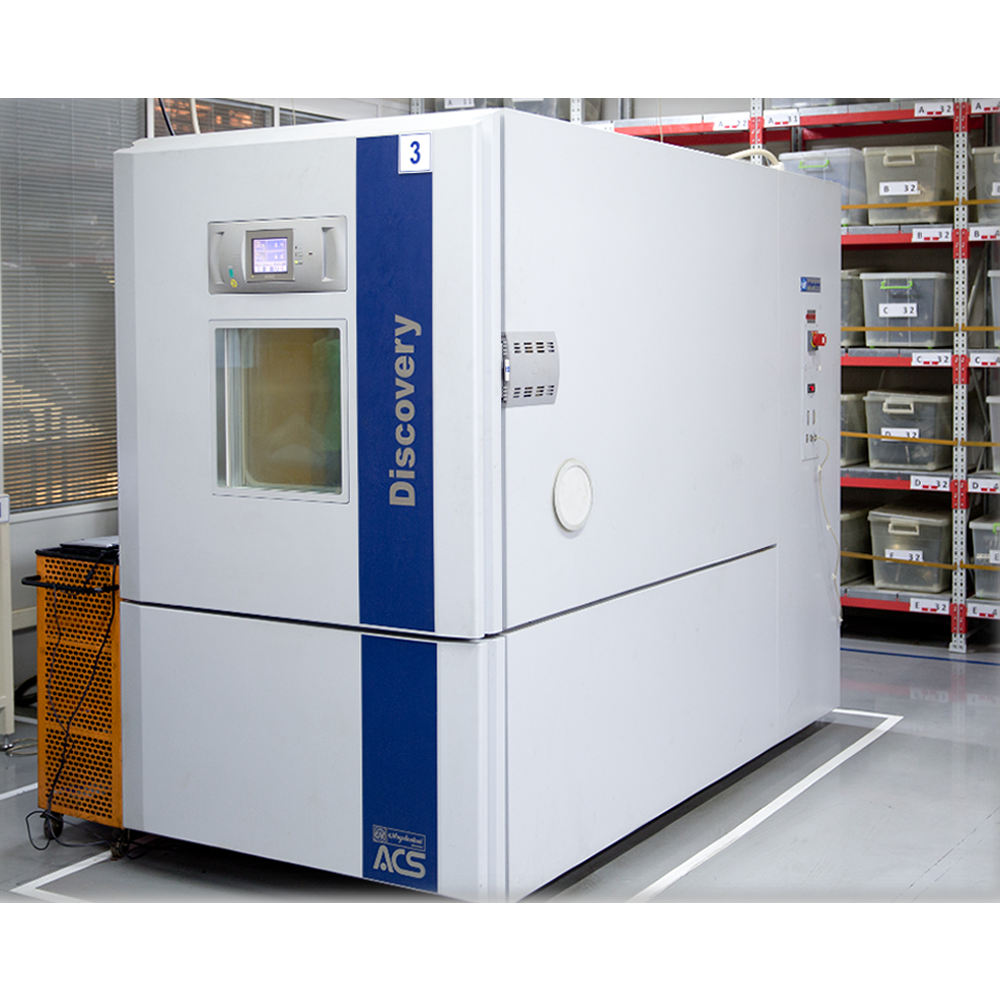

Climatic Chamber-1

Usable Volume: 1535 l

Interior Dimensions (WxDxH mm):  1000 x 1505 x 1020

Temperature Range: -40 °C  … +150 °C

Temperature Fluctuation: ±0.1 °C  … ±0.3 °C

Heating Rate: 3 °C/dk

Cooling Rate: 3 °C/dk

Relative Humidity Range (-20 °C/+94 °C): %10 – %98

Relative Humidity Sensitivity: ±%1 – ±%3

Test Step Programming

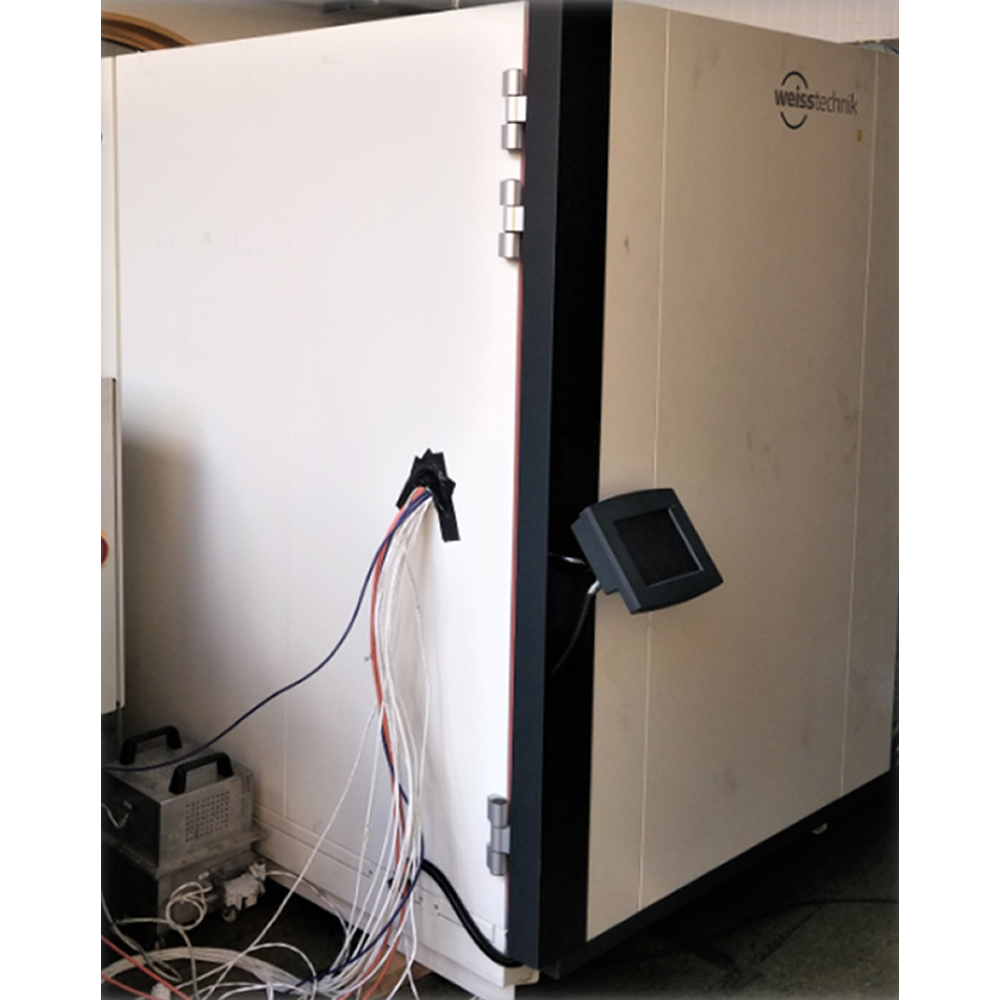

Climatic Chamber-2

Usable Volume: 1600 l

Interior Dimensions (WxDxH mm): 1100 x 900 x 1500

Temperature Range: -70 °C – +180 °C

Temperature Fluctuation: ±0.1 K – ±0.5 K

Heating Rate: 3 °C/dk

Cooling Rate: 3 °C/dk

To request a quote for our services please complete our RFQ Sheet Form.

Would you like to see our references ?
