Hydrodynamic Test System

Tekno - ETA > Hydrodynamic Test System

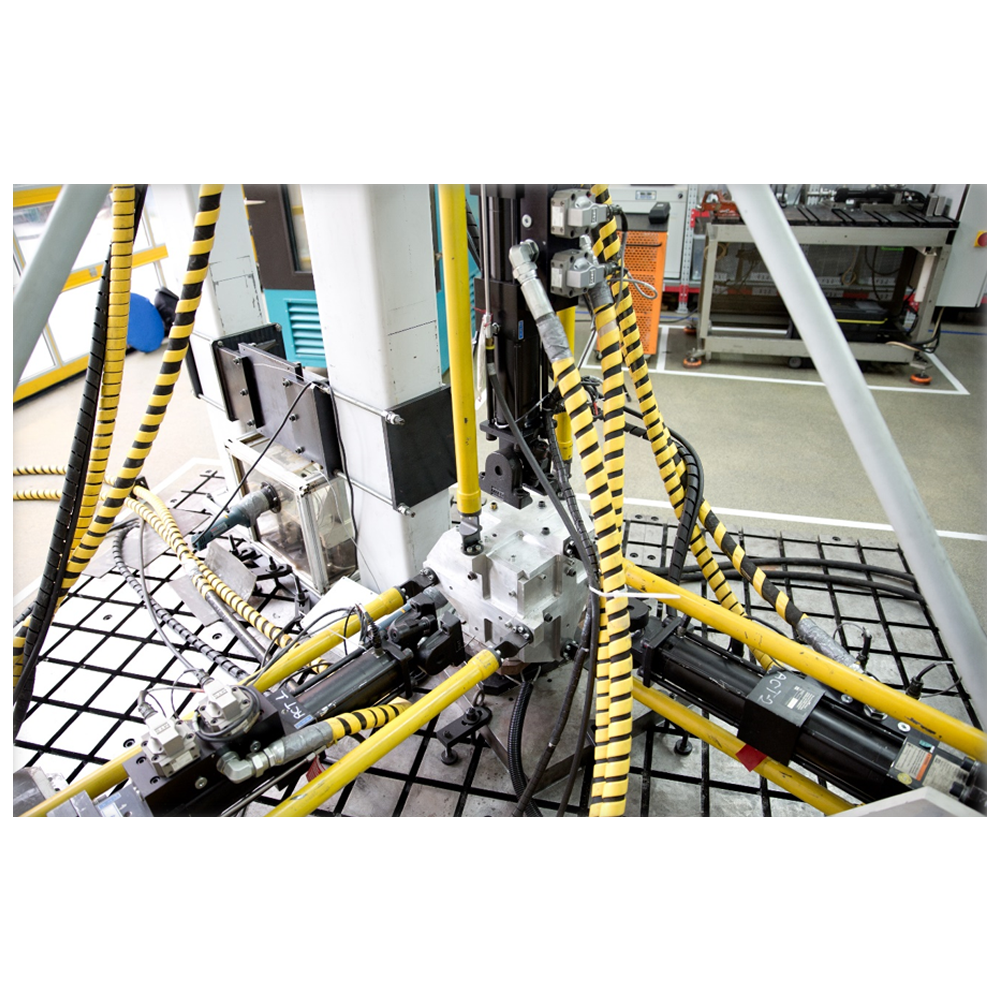

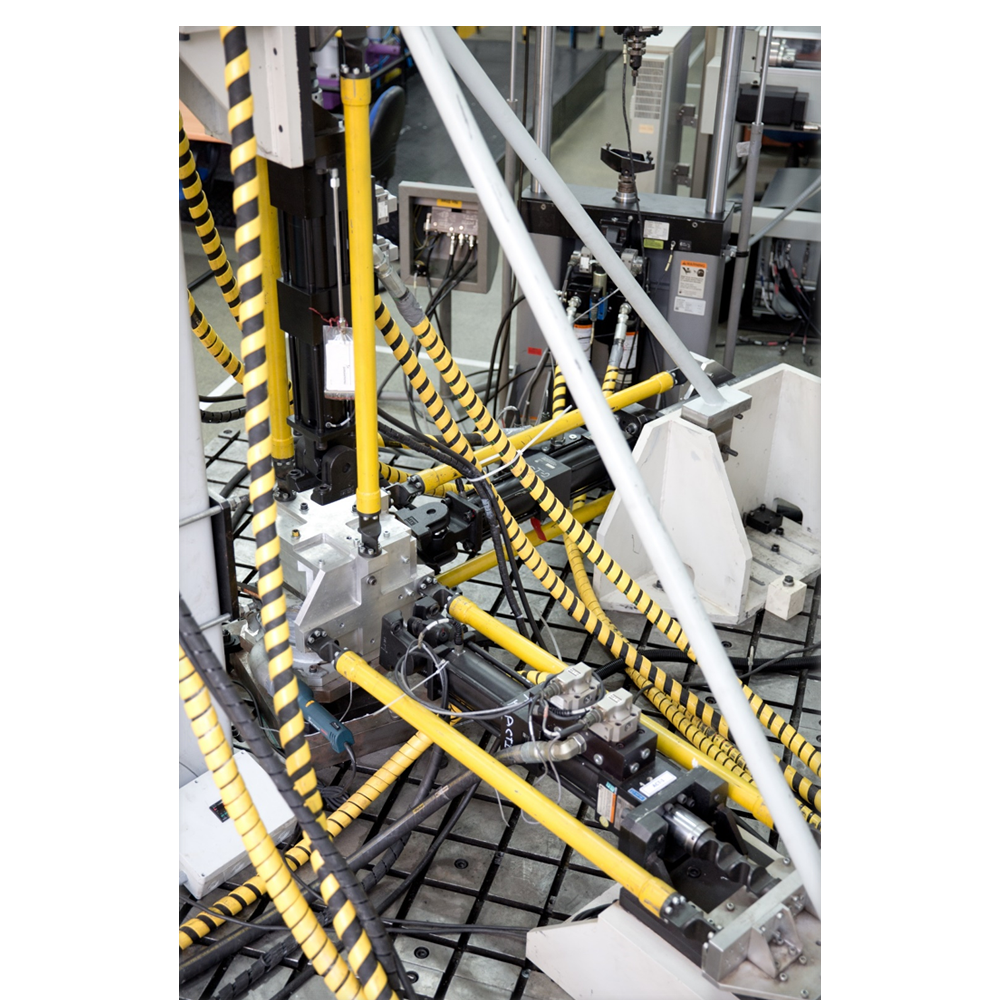

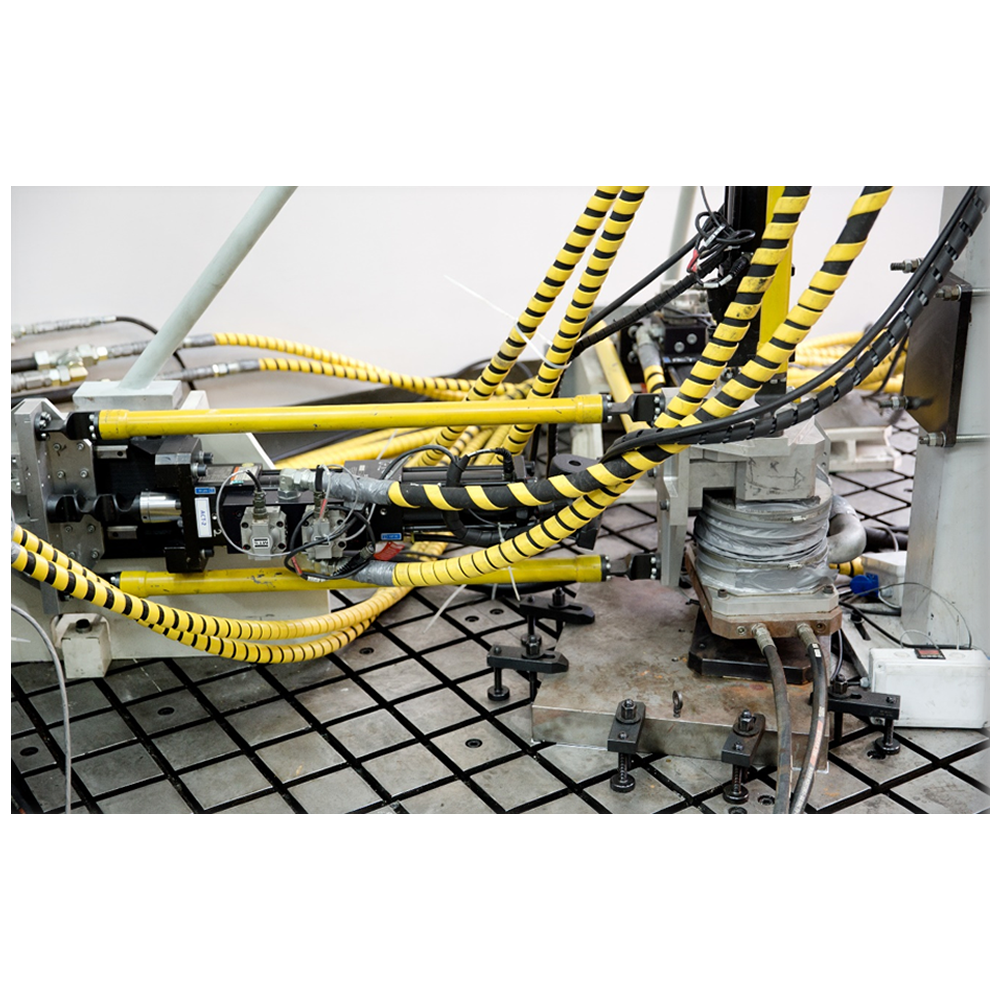

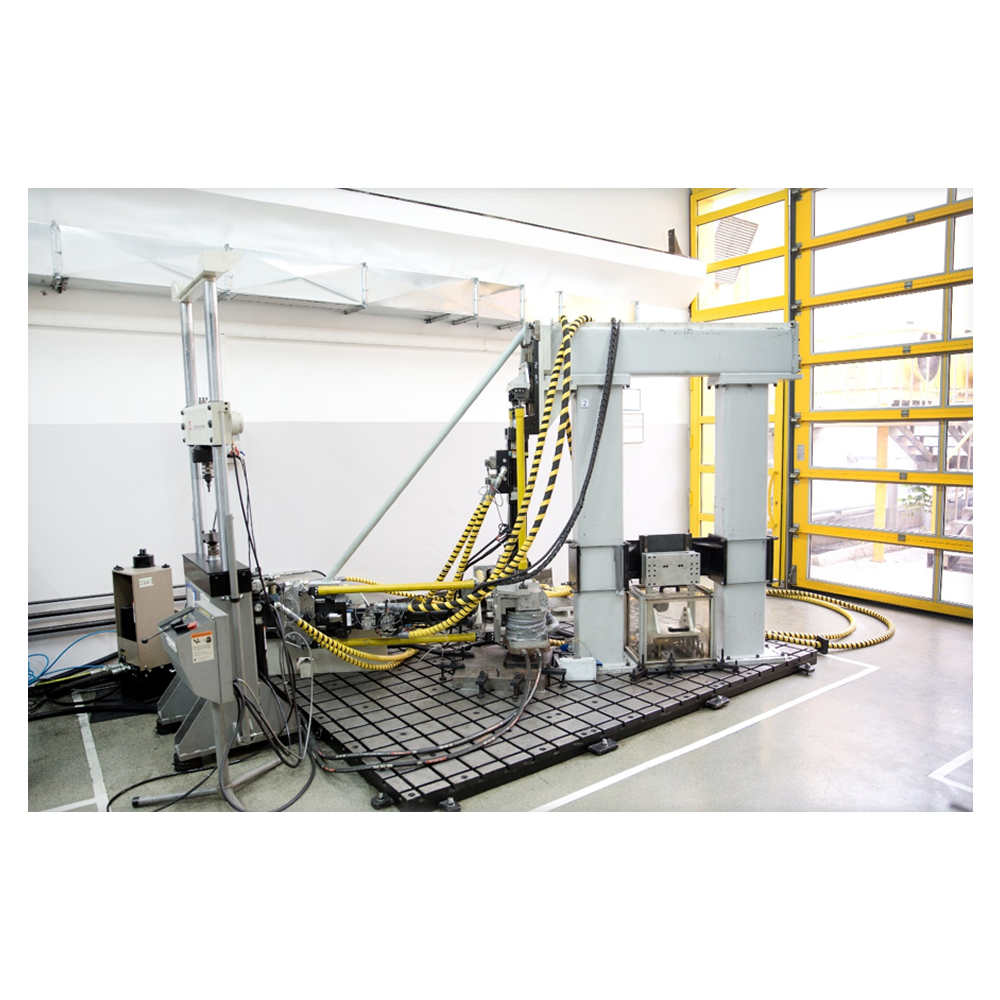

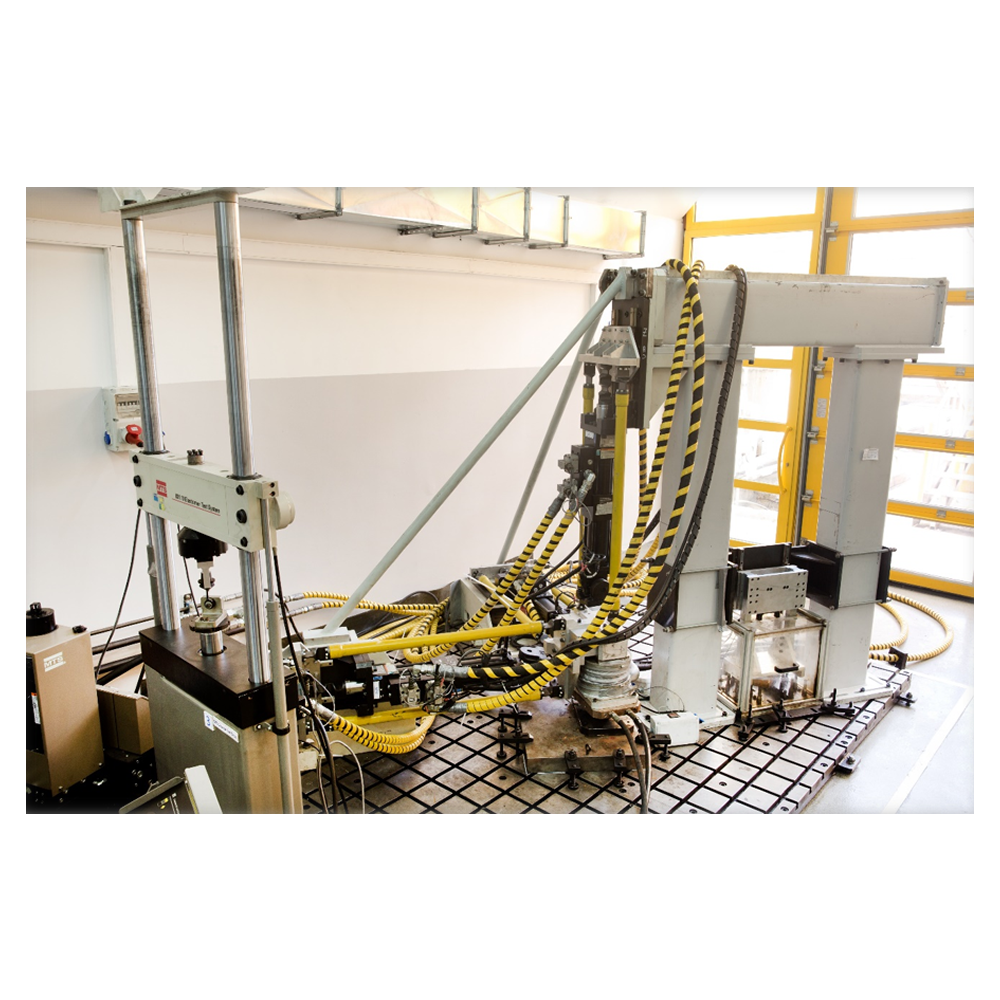

Durability and fatigue testing are very important to confirm the robustness and expected lifetime of components. A validation test reflecting actual road conditions is required to guarantee the safety of an automobile part during its long service life. Using three axes durability testing infrastructure, we can carry out durability and fatigue tests of products on single-axis or multi-axis. Loads are applied to the parts via servo-hydraulic actuators. Loadings can be periodic or road load history type. In Tekno-ETA, we are also able to carry out durability and fatigue tests under temperature-controlled conditions.

The technical specifications of Hydrodynamic Testing infrastructure in Tekno-ETA;

  • 50 kN Actuators
    • Frequency Range : 0-100 Hz
    • Force Range : ± 50 Kn
    • Displacement Range: ±75 mm
  • 500 kN Actuator
    • Frequency Range : 0-5 Hz
    • Force Range : +450, -600 kN
    • Displacement Range : ±250 mm

The testing configurations that can be arranged;

  • Sinusoidal Durability Test in 1,2 and 3 axes
  • Road Load Durability Testing up to 3 axes
  • Single-Axis Sinusoidal
  • Single-Axis Road Load Data
  • Multi-Axis Sinusoidal
  • Multi-Axis Road Load Data

To request a quote for our services please complete our RFQ Sheet Form.

Would you like to see our references ?
